5 Piece (MOQ)
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Plastic |
| Color | Grey |
| Voltage | 240V |
| Click to view more | |
Product Details
Power
16A/25A/32A
Surface Finishing
Power Coated
Specialities
Good Quality, Easy To Use
Model
IFJ13
Features:
- Fire & Ignition proof.
- AL die-cast LM-6 housing.
- Two earthing for better safety-internal & external.
- Neoprene gasket for trouble free long life.
- External hardware made of SS.
- High rating contacts 10A, 24/240/415 V AC/DC
- Highly reliable professional design.
Applications:
- Chemical, paint, fertilizer industries,
- Oil & gas, refinery, petrochemicals,
- LPG bottling, pharmaceutical
- Steel, Cement industries, Mines
Standards Compliance
IS/IEC 60079-1:2014
Options
Canopy — Light Grey 631 epoxy paint ( GI/MS/FPR)
- Cable Gland — M20 or 5" NPT (Brass/AL/SS304/SS316)
- Stopper plug — M20 or 1/2' NPT (Brass/AUSS304/SS316)
- Start Push Button — KEY operated
- Hood Cable Gland — PVC, Black Color
- Feed terminal — DIN rail — Screw Type 2.4/4/6 sq mm
- Packing — Wooden
Applicable Use
- Zone 1 & Zone 2
- Gas group IIA, IIB, IIC, IIIC, Temperature class T6

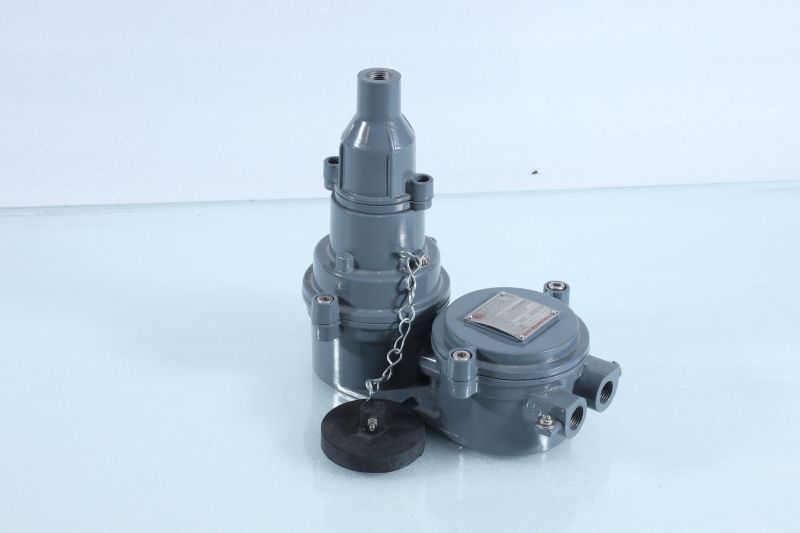

Looking for "Flameproof Switch Socket with Plug" ?
